Triple scissor-lift table


October 29, 2010
by MM&D staf

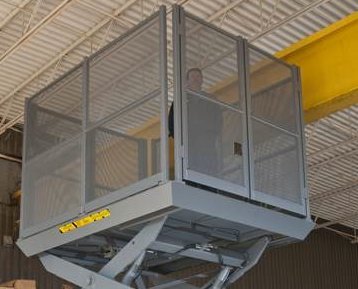

The Pentalift Triple Scissor Lift Table has a fully enclosed, four sided, gated 72in high safety mesh enclosure.

Used in a recreation facility the product is loaded onto the platform in the lowered position and the gates are closed. The platform raises 15’ to the upper level, the gates are opened and the product is removed.

The application requirements stipulated a platform size of 84” wide by 108” long with a lifting capacity of 4,000 lbs. To provide the specified lift speed the lift table was supplied with a remote 3HP power unit. To further ensure safe operation the gate assemblies are interlocked to the power unit control circuit. Unless both gates are fully enclosed and locked the unit will not raise or lower.
